Product features
?Full gears driven in the headstock, with 8 steps of cyclic speed-changing.Invention patent technology.Minimum speed 45rpm
?Feeding box with 12 steps of variable speeds ,covering common threading pitches .
?Longitudinal & cross auto feeding adopts inter-lock structure with good safety.
?High frequency hardened Two V-type widened guideway with rigidity.
?Inclined wedge toolpost carriage; Camlocked tailstock;Industrial lathe operation rod

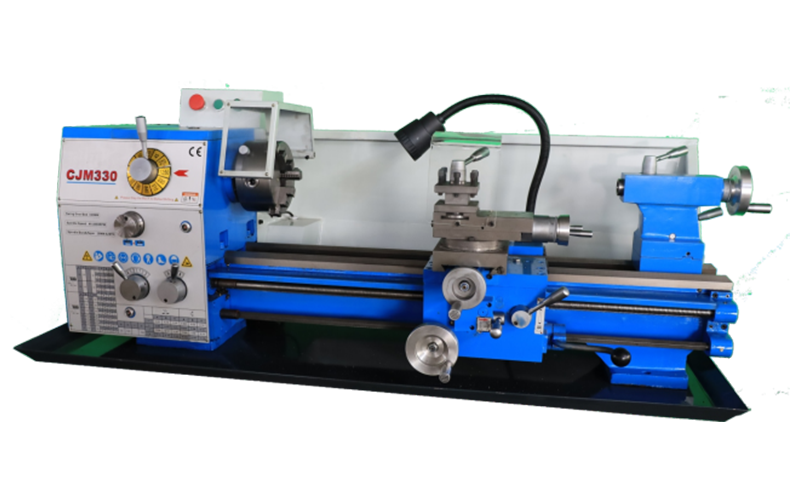

Technical parameters | Model | |
CJM330/ 500 | CJM330/750 | |
Max. swing over bed | 330mm | |
Max. work-piece length | 500mm | 750mm |
Max. swing over carriage | 200mm | |
Main spindle diameter | 38mm | |
Main spindle taper | MT. 5# | |
Max. cross travel of carriage | 200mm | |
Max. travel longitudinal of toolpost | 75mm | |
Metric threads range/ No | 0.40 ~ 3. 5mm/ 14 | |
Imperial threads range/ No | 8 ~ 56T. P. I/ 30 | |
Module threads range/ No | 0.20 ~ 1.75M. P/ 14 | |
Diametrical threading range/ No | 16 ~96D. P/ 12 | |
Toolpost longitudinal feeding per spindle rotation | 0.05 ~0. 35mm/ r | |
Toolpost cross feeding per spindle rotation | 0.025 ~0. 18mm/ r | |
Max. travel of tailstock sleeve | 75mm | |
Tailstock sleeve taper | MT.3# | |
Spindle speed steps | 12 | |
Main Spindle speed scope | 45 ~2000 rpm | |
Main motor power | 750W | |
Net weights/Gross weights | 280/ 320kg | 290/ 335kg |
Overall dimensions( L*W* H) | 117×68×65cm | 142×68×65cm |
Packing dimensions (L*W* H) | 131×78×77cm | 153×78×77cm |
Stamdard accessories | Optional accessories | ||
3 -jaw chuck | Φ160 | Chip tray | Machine Base |
Belt | A type 800 | Steady rest | Follow rest |
Dead centers | MT.3#, 5# | 4 -jaw chuck Φ160/ Φ200 | Flange plateΦ160/ Φ200 |
Chuck spanner | 1 piece | Face Plate Φ250 | Thread dial indicator |
Allen wrench | 4#,5#,6# | Special optional change gears( 10) | Live center |
Stud dead | 12 - 14; 17 - 19 | Coolant | Work light |
Changing gears | 40T | Digital readout | Optional motor 1. 1/ 1. 5KW |
Product features
?Full gears driven in the headstock, with 8 steps of cyclic speed-changing.Invention patent technology.Minimum speed 45rpm
?Feeding box with 12 steps of variable speeds ,covering common threading pitches .
?Longitudinal & cross auto feeding adopts inter-lock structure with good safety.
?High frequency hardened Two V-type widened guideway with rigidity.
?Inclined wedge toolpost carriage; Camlocked tailstock;Industrial lathe operation rod
Kind Tips:The products will be improved and updated continously. The changes shall not be noticed additionally. Due to the di?erent con?guration requirements , the machines pictures and physical objects may be di?erent , and the physical machines prevail.
